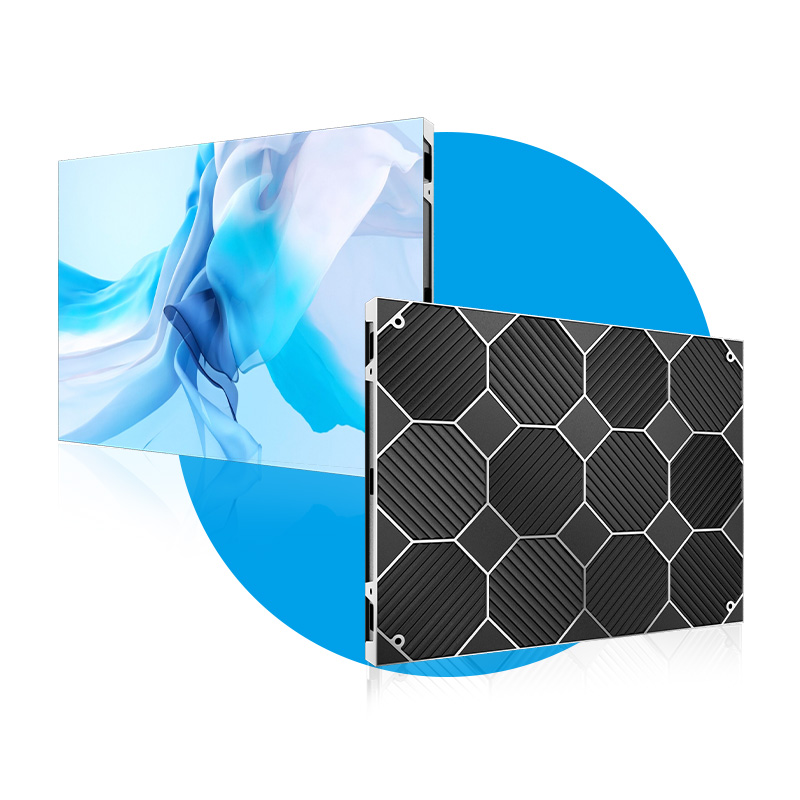

小间距LED显示屏-K 系列
- 4:3箱体尺寸640×480mm
- 易于安装的硬连接前端维护设计
- 压铸铝箱体设计
- 易于安装和拆卸
产品特点
产品参数
相关产品
立刻询价
全前维护硬链接设计
·无线材，间接易操作
·支持系统备份
640x480mm 压铸铝箱体设计
·高质量压铸铝箱体，箱体平整度高
·超薄箱体，厚度仅48mm
全前维护
·强磁铁吸附模组，易于安装及拆卸
支持多种安装方式
贴墙安装/移动支架安装(一体机)/切角安装/日字架安装/挂装
支持4K/8K画面
·小间距像素模组，画面效果高清逼真
产品参数
| Model Number | P1.25 | P1.53 | P1.86 | P2.5 |
| Pixel Pitch(MM) | 1.25 | 1.53 | 1.86 | 2.5 |
| LED Standard | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module Size（MM） | 320X160 | 320X160 | 320X160 | 320X160 |
| Module Resolution(Dots) | 256X128 | 208X104 | 172X86 | 128X64 |
| Density(Dot/m²) | 640000Dot/m² | 425000Dot/m² | 288906Dot/m² | 160000Dot/m² |
| Cabinet Size（MM） | 640X480X48mm | 640X480X48mm | 640X480X48mm | 640X480X48mm |
| Module Arrangement Per Cabinet | 2X3 | 2X3 | 2X3 | 2X3 |
| Cabinet resolution | 512X384 | 416X312 | 344X258 | 256X192 |
| Cabinet Weight(Including Module) | 7.2kg | 7.2kg | 7.2kg | 7.2kg |
| Maintenance Mode | Full Font Service | Full Font Service | Full Font Service | Full Font Service |
| Brightness | 500-800nits | 500-800nits | 500-800nits | 500-800nits |
| System Backup | Support | Support | Support | Support |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Viewing Angle | 160°(V/H) | 160°(V/H) | 160°(V/H) | 160°(V/H) |
| Brightness Uniformity | ≥99% | ≥99% | ≥99% | ≥99% |
| Scanning Mode | 1/64 | 1/52 | 1/43 | 1/32 |
| Working Voltage(Input) | 110-240V,50/60Hz | 110-240V,50/60Hz | 110-240V,50/60Hz | 110-240V,50/60Hz |
| Power Consumption(Max.) | 500W/m² | 500W/m² | 500W/m² | 500W/m² |
| Power Consumption(Avg.) | 165-260W/m² | 165-260W/m² | 165-260W/m² | 165-260W/m² |
| Protection Lever | IP45 | IP45 | IP45 | IP45 |
| Grayscale Level | 14-16bits | 14-16bits | 14-16bits | 14-16bits |
| Working Temperature&Humidity(RH) | -20~50℃&35-75% | -20~50℃&35-75% | -20~50℃&35-75% | -20~50℃&35-75% |
| Installation | On-wall/recessed/pedestal/suspended/stacked install | On-wall/recessed/pedestal/suspended/stacked install | On-wall/recessed/pedestal/suspended/stacked install | On-wall/recessed/pedestal/suspended/stacked install |
| Signal Output | HDMI/VGA/DVI/DP | HDMI/VGA/DVI/DP | HDMI/VGA/DVI/DP | HDMI/VGA/DVI/DP |
| Life Span | ≥100000Hours | ≥100000Hours | ≥100000Hours | ≥100000Hours |
| Certification | RoHS/FCC/CE | RoHS/FCC/CE | RoHS/FCC/CE | RoHS/FCC/CE |
